*Steel structure workshop:
1. Column: Q235, Q345 welding H section steel
2. Beam: Q235, Q345 welding H section steel
3. Purlin: Q235 C channel or Z channel
4. Knee brace: Q235 angle steel
5. Vertical and transversal support: Q235 angle steel, round bar or steel pipe.
6. Tie bar: Q235 steel pipe
7. Brace: Q235 round bar
8. Sleeve: Q235 steel pipe
9. Cladding system: Sandwich panels (EPS, PU, Fiber glass wool etc. ) or can use corrugated steel sheet with fiber glass wool insulation and steel wire gauze.
10. Second floor: Floor deck
11. Second floor office: Fiber cement board floor panel or checkered steel plate
12. Stair: Q235 steel structure with checkered steel plate
13. Door: Sandwich panel sliding door or roller door
14. Windows: PVC or Aluminum
15. Gutter: Stainless steel or color steel sheet
16. Rainspout: PVC
|Dimensions||Length||H beam: 4000-15000mm|
|Thickness:||web plate: 6-32mm|
wing plate: 6-40mm
|Color||According to customers|
|Size||MOQ is 300 m2, width * length * eave height,|
|Advantages||1. Lower cost but beautiful outlook.|
2. High safety performance.
3. easy to assemble and dismantle
4. manufacture under complete quality control system---ISO9001
5. installation with instruction of experienced engineers
|Main components||Base||Cement and steel foundation bolts|
|Main frame||H beam|
|Material||Q235B, Q345B or others as buyers' requests.|
|Purlin||C or Z purlin: Size from C120~C320, Z100~Z20|
|Bracing||X-type or other type bracing made from angle, round pipe|
|Bolt||Plain bolt and High-strenth bolt|
|Roof & wall||Sandwich panel or color plate|
|Door||Sliding or rolling door|
|Window||Aluminium alloy window|
|Surface||Two lays of Anti-rust Painting or Hot Dip Galvanized|
|Sheet||0.5mm or 0.6mm galvanized sheet|
|Accessories||Semi-transparent skylight belts, Ventilators,|
down pipe, Glavanized gutter, etc
|Usages||1. workshop, warehouse, plant|
2. Steel web frame structure
3. Steel H-column and steel H-beam
4. Portal frame products
5. High rise building project
6. Others steel structure buildings
|Packing||Main steel frame without packing load in 40' OT,|
roof and wall panel load in 40' HQ!
|Drawing:||According to drawings or according to customer ' s requirement.|
|If you need we design for you, please supply us the following parameter|
together with detail size:
1) length, width, height, eave height, roof pitch, etc
2) wind load, snow load, raining condition, aseismatic requirements, etc
4) Demands for doors and windows
5)Other information if necessary
*Advantages of the steel structure for workshop
1)Light weight, industrialized manufcture, convenient for shipment and transportation.
2)High strength, wide span.
3)corrosion resistance, heat-insulation.
4)Highly secure and reliable.
5)fast installation, shorter construction time.
6)Easy and fast to build, low cost.
7)Resistant to 8-9 earthquake grades.
8)Span life: Up to 50 years.The steel structure materials can be recycled, thanks to this the building is environmental friendly.
Quality certification ISO: 9001: 2008;
SGS Inspection and other third party Inspection acception.
Full and advanced equipment: CNC laser cutting machine; CNC bending machines;
Nc drilling machine CNC Continuous mode of production lines etc.
Strictly quality control: Inspection every link; Pre assembled before delivery.
*After sale service:

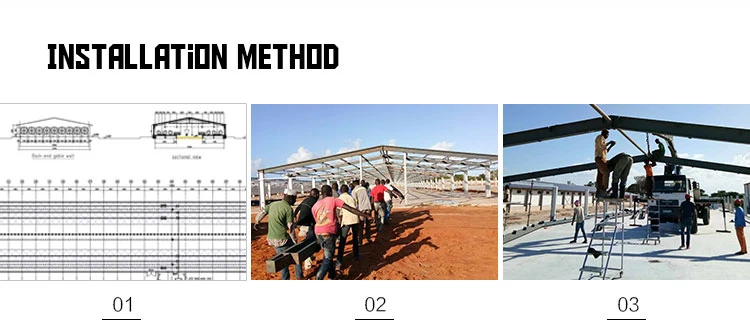

1. We can send our technical engineer to your country to do the installation.
2. We can help you design the chicken shed for free.
3.12 hours online service each day, free technical support.
4. We have passed ISO9001: 2008 Quality Management System Certification.
